Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer

Product Categories
Guangzhou Concord Sound Industrial Co., Ltd.
Contact Now

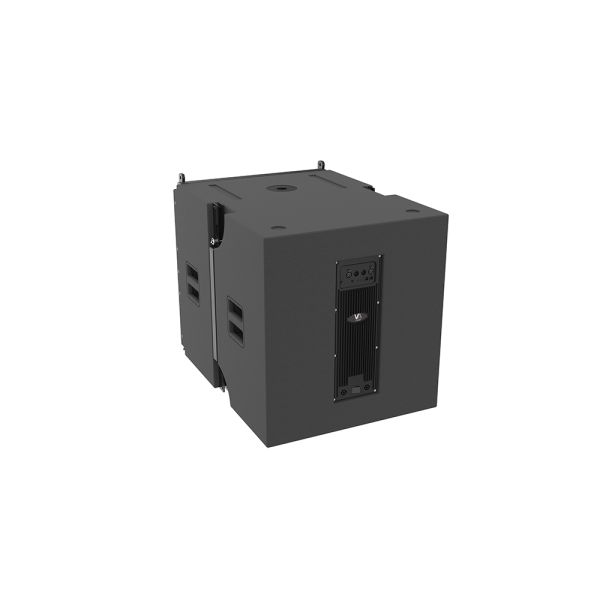

Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer

  • 1
  • 2

Place of Origin : Guangdong, China

Brand Name : VA

Model Number : LA18P

Packaging Details : soft bubble inside,thick carton outside

Price : $3,500.00/pieces 1-99 pieces

Warranty : 1 year

Customized : Yes

Product name : 1200W 18-inch professional active speaker subwoofer for concert

Type : Active

Frequency Response : 30Hz-180kHz 28Hz-150kHz(-10dB)

Power(AES/PERK) : 1200W/4800W

Directivity : Omnidirectional

SPL(AES/PERK) : 129dB/135dB

Speaker driver : LF 18"

GW : 72kg

Application : indoor or outdoor events

Cabinet Size : 766*720*926MM

Contact Now

Product Description

VA High Quality 1200W 18-inch professional active speaker subwoofer for concert

Features:
100mm High transient dual magnetic steel woofer
Increase energy of low frequency through large inverted image tube
Built-in handle to meet different installations
Wheel system can save space on delivery
Built-in digital power amplifier of DSP
Preset 4 processor parameter modes to meet different venues
2 installations to meet different venues
Automatic power supply voltage selector for global using
The latest generation correction technology(PFC) of single stage power factor
0.55W low standby power consumption, energy saving and environmental protection
Complete protection mechanism includes shutdown against overheat, short circuit protection, overload protection and permanent high frequency protection
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Specification
Physical data
Connector
XLR-F/M
Cabinet material
18mm plywood
Finish
Black stonetex paint
G.W
72kg
Package size(w*h*d)
766*720*926mm
Angle
-8°, -5°,0°,+ 5°
AC main power
Power handling
100-240V±10%,50-60Hz
Input voltage
90V-260V AC
Output power handling
2x1000W+2000W@8Ω
Audio specification
Voltage gain
35dB
Input sensitivity@8Ω
1.739V/7.8dBu
In/Out interface
XLR-F/M
Frequency response
20Hz-33kHz(0/-1dB)@1W,8Ω
Signal to noise ratio
>119dB(20Hz-20kHz,A weighted)
Damping coefficient
>10000@100Hz
DSP specification
DSP passages
2 in/3 out
Frequency response
20Hz-20kHz(-0.5dB)
Input maximum voltage
8.2V/+20dBu
Output maximum voltage
4.1V/14.3dBu
THD+N
<0.02%(20Hz-20kHz)
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
Concert Active Line Array 1200W 18 Inch Active Speaker Subwoofer
