2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker

Product Categories
Guangzhou Concord Sound Industrial Co., Ltd.
Contact Now

2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker

Brand Name : VA

Model Number : LA-suit

Certification : CE, ROHS

Place of Origin : Guangdong, China

MOQ : 1set

Price : $100.00 - $4,500.00/sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30-45days

Packaging Details : soft bubble inside,thick carton outside,or flying case

Item No : LA-suit

Speaker Power(AES/PEAK) : 430W/1720W

Subwoofer Power(AES/PEAK) : 1200W/4800w

Speaker SPL(AES/PERK) : 129dB/135dB

Subwoofer SPL(AES/PERK) : 129dB/135dB

Speaker driver : LF 1x10" neodymium+HF 1x3"(Aviation Titanium Film)

Subwoofer driver : LF 1x18"

Contact Now

Product Description

LASuit Active Line Array System 2 Tops 1 Sub Portable Line Array Speaker System

Specification
LAS(full range speaker)
LA18P(subwoofer)
Frequency response:
60Hz-18KHz (±3dB) 50Hz-20KHz (-10dB)
30Hz-180kHz(±3db) 28Hz-250kHz(-10db)
Nominal directivity(-6dB):
90°(H)x 10°(V) constant
Sensitivity(1w/1m):
103dB
Power handling(AES/PEAK):
430W/1720W
1200W/4800W
Nominal impedance:
16Ω
Maximum SPL:
129dB/135dB
129dB/135dB
LF driver:
1×10'' (2.5'' voice coil) neodymium driver
1x18" paper cone driver (4" voice coil)
HF driver:
1×3'' (3'' voice coil) neodymium titanium film driver

Connector:
2xSpeakon NL4MP
XLR-F/M
Cabinet material:
18mm plywood
18mm plywood
Finish:
Black stonetex paint
Black stonetex paint
Grill:
Steel
Steel
N.W:
25KG
69KG
Cabinet size(L*W*H):
610*400*310mm
806*681*610mm
AC Main Power(LA18P)
Rated power requirement:
100-240V±10%,50-60Hz
Input voltage:
90V-260V AC
Output power handling:
2x1000W+2000W@8Ω
Audio specification(LA18P)
Voltage gain:
35dB
Input sensitivity@8Ω:
1.739V/7.8dBu
In/Out interface:
XLR-F/M
Frequency response:
20Hz-33kHz(0/-1dB)@1W,8Ω
Signal to noise ratio:
>119dB(20Hz-20kHz,A weighted)
Damping coefficient:
>10000@100Hz
DSP specification(LA18P)
DSP passages:
2 in/3 out
Frequency response:
20Hz-20kHz(-0.5dB)
Input maximum voltage:
8.2V/+20dBu
Output maximum voltage:
4.1V/14.3dBu
THD+N:
<0.02%(20Hz-20kHz)
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker

FULLE RANGE SPEAKER--LAS

2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker

ACTIVE SUBWOOFER--LA18P

2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
VR
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
Foshan New Year's Eve Electronic Syllable
Date: December 31,2019
Location: Foshan City
Live audience: over 10000

Audio Equioment:
FOH:
16pcs dual 15-inch line array speakers #Pro X
4pcs 10-inch line array speakers #LAS
Subwoofer:
8pcs 18-inch inverted subwoofers #S28
4pcs 18-inch subwoofers #SH18B
Monitor: 8pcs 15-inch coaxial stage monitors--CM1
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
Lin “Show Hand” Concert
Date: May 4, 2019
Location: Zhuhai Sports Center
Description: More than 5,000 spectators felt a shocking performance

Audio Equioment:
FOH:
8pcs dual 12-inch line array speakers #LAL
8pcs 10-inch coaxial line array speakers #LAC
4pcs 10-inch coaxial line array speakers #LAS
Subwoofer:
4pcs 18-inch inverted subwoofer speakers #S28
4pcs 18-inch cardioid subwoofer speakers #LAC-S2
Monitor: 12pcs 15-inch stage monitors #CM1
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker

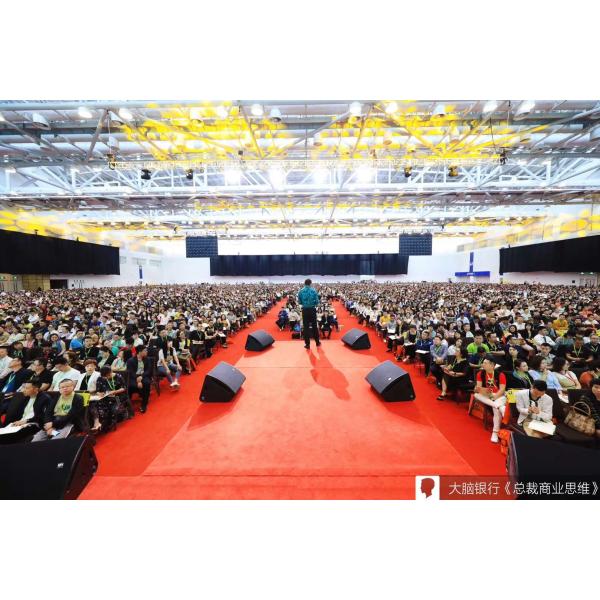

“Brain Bank” Lecture
Date: April 8, 2019
Location: Zhuhai City
Live audience: over 10000

Audio Equioment:
FOH:
16pcs dual 15-inch line array speakers #Pro X
8pcs dual 12-inch line array speakers #LAL
8pcs 10-inch coaxial line array speakers #LAC(side fill)
8pcs 10-inch line array speakers #LAS(front fill)

Subwoofer:
2pcs dual 18-inch inverted subwoofers #S28
8pcs 18-inch subwoofers #SH18B
Monitor: 10pcs 15-inch coaxial monitors #CM1
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
Joey Yung STU CONCERT
Date: August 23, 2018
Location: Shantou University
Live audience: over 10000

Audio Equioment:
FOH:
24pcs dual 12-inch line array speakers #LAL
16pcs 10-inch line array speakers #LAS
Subwoofer:
12pcs dual 18-inch inverted subwoofers #S28
8pcs 18-inch subwoofers #LASUB
Monitor: 8pcs 15-inch coaxial stage monitors #CM1
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
“Love Endless” Tour Concert
Date: December 17-December 24, 2017
Location: Guangzhou, Humen, Foshan
Live audience: over 2000

Audio Equioment:
FOH:
8pcs 10-inch coaxial line array speakers #LAC
Subwoofer:
2pcs 18-inch inverted subwoofer speakers #S28
4pcs 18-inch cardioid subwoofer speakers #LAC-S2
Monitor:
12pcs 15-inch coaxial stage monitors #CM1
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
The 30th Anniversary Celebration of Yanhe
Date: November 18, 2017
Location: Tongren City
Live audience: over 30000

Audio Equioment:
FOH:
24pcs dual 12-inch line array speakers #LAL
16pcs dual 12-inch line array speakers #X-212
16pcs 10-inch line array speakers #LAS
Subwoofer:
24pcs 18-inch inverted subwoofer speakers #S28
Monitor: 12pcs 15-inch coaxial stage monitors #CM1
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
2 Tops 1 Sub Full Range Active Speaker 430W / 1720W Line Array Active Speaker
