DP24 / DP36 Karaoke Digital Processor Audio Sound System Processor

Place of Origin : Guangdong, China

Brand Name : VA

Model Number : DP8/DP24/DP36

Packaging Details : soft bubble inside,thick carton outside

Supply Ability : 10000 Piece/Pieces per Month

Price : $220.00 - $1,500.00/pieces

Warranty : 1 year

Customized : Yes

Product name : professional sound system karaoke digital effect audio processor

Item No : DP8/DP24/DP36

Frequency Response : 20Hz-20kHz, ±0.5dB

Channel : 4 in-4 out/2 in-4 out/3 in-6 out

Channel gain : -18 -12dB

Input impedance : >10kΩ

Output Impedance : 50Ω

Power supply : 90-240VAC(50/60Hz)

Interface : 3 pin XLR

RS-485 : 3 Pin m-XLR fm-XLR

Port : Guangzhou, Shenzhen

Contact Now

Product Description

VA professional 4-in 4-out professional sound system karaoke digital effect audio processor

Feather:
96kHz sampling frequency 24 bits processing accuracy

Each input channel has 30 parameter equalization

Each output channel has 7 parameter equalization

Unique full pass filter can correct phase curve

A variety of frequency division types and frequency slopes

Each input channel delay 480ms

Each output channel delay 270ms

Output channel with limiter

Built-in noise signal

Up to 32 preset program storage capacity

Provides multiple password protection programs

Connect the computer via USB or RS485

Remote control 32 equipment at the same time

DP24 / DP36 Karaoke Digital Processor Audio Sound System Processor

Specification

	DP8	DP24	DP36
Channel	4-in 4-out	2-in 4-out	3-in 6-out
Input impedace	＞10KΩ
Output impedace	50Ω
Max SPL	+20dBu
Frequency response	+/-0.5dB (20 to 20kHz)
SNR	112dB typical (dBA)
CMRR	>40dB (20 to 10kHz)
Crosstalk	< -100dB
Distortion	0.005% (1kHz @ 0dBu)
DSP	32 bits (can be 40 bits) Floating Point Unit
Sampling rate	96kHz
ADC/DAC	24 bits high-resolution chip
Transmission delay	1.3ms
Display	2 lines 20 characters backlit LCD
Electric Level	7 LED display
Push-button	6~9 mute switch, 6~9 channals select button, 3 menu key, 3 data adjustment key
Input/output interface	3pin XLR
RS-485	3pin m-XLR fm-XLR
USB connector	Type B
Power	Socket with IEC standard
Power supply	90-240 VAC (50/60Hz)
Cabinet size(lwh)	483×44×229mm
Package size(lwh)	53030090mm			43030590mm
N.W(kg)	3.5			3.5
G.W(kg)	3.7
Master gain	-18 to 12bB, 0.1dB stepping
Delay	Each input MAX 480ms
Delay	Each output MAX 270ms
EQ	Each input, 30 PEQ (DP24) 18 PEQ (DP36)
EQ	Each output, 7 EQ
EQ	Oaraneter, HP, LP, shelv, full pass, bass pass, trapper
EQ	-15 to +15dB, 0.5dB stepping
EQ	0.009 to 4.8 octaves (Q=0.3 to 20)
Filter tpyes	Butterworth, Bessel, Linkwitz Riley
Threshold value	-10 to +20dBu
Compression ratio	1:1 to 32:1
Soft and hard inflexion	0% to 100%
Starting time	5 to 200ms
Release time	0.1s to 3s

Product Tags:

DP24 Karaoke Digital Processor

DP36 Karaoke Digital Processor

Audio Sound System Processor

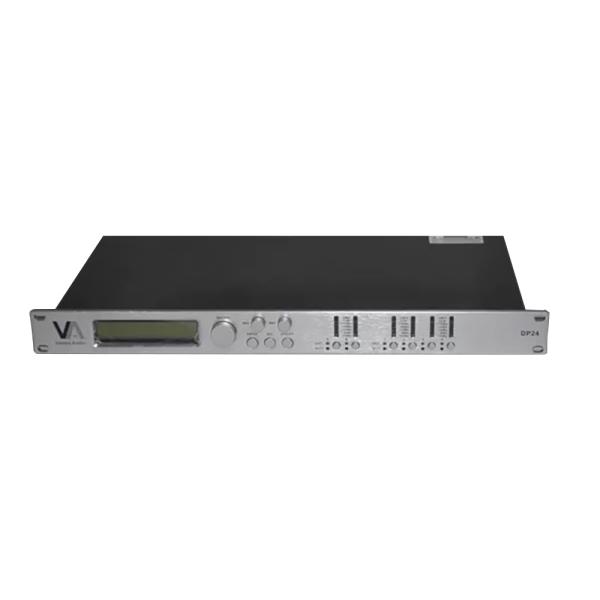

DP24 / DP36 Karaoke Digital Processor Audio Sound System Processor Images
